(!!!) (Best Single) 6BX7GT Sylvania Motorola triple mica "O" getter NOS 1963 (73.6ma/75.6ma) (close triode balance)
(!!!) (Best Single) 6BX7GT Sylvania Motorola triple mica "O" getter NOS 1963 (73.6ma/75.6ma) (close triode balance)
$ 21.99

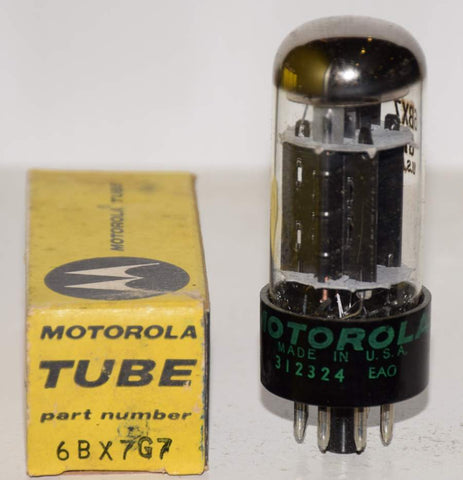

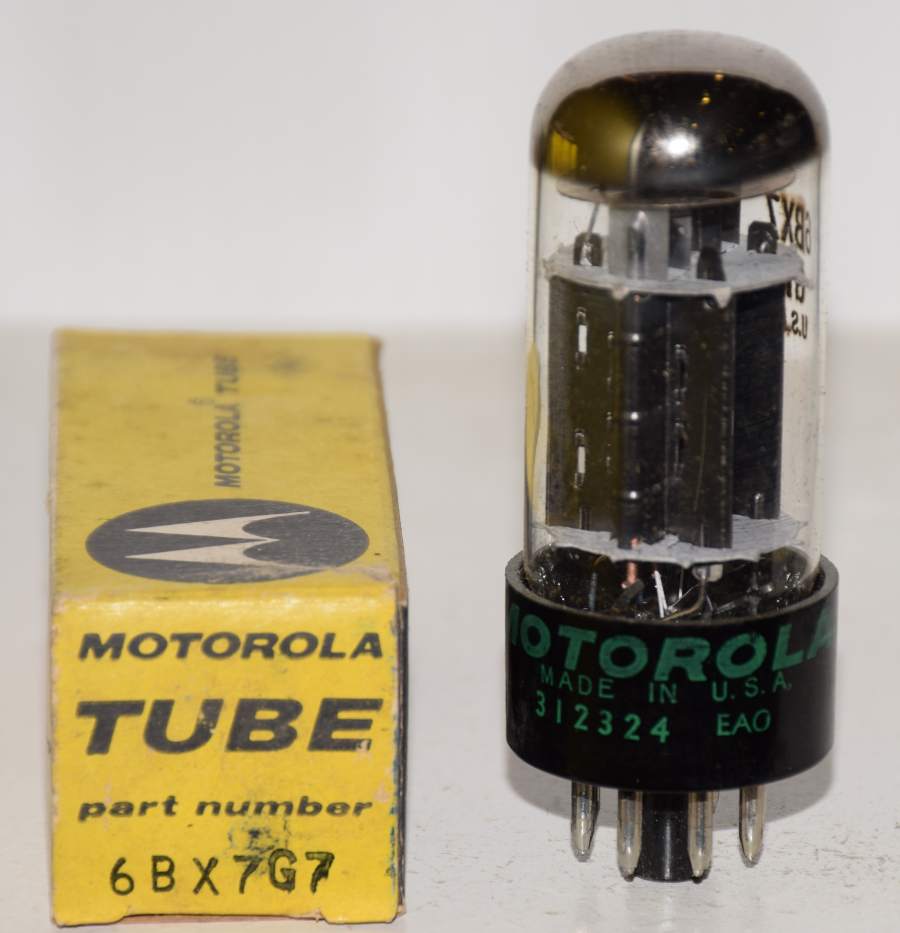

1 tube) 6BX7GT Sylvania Motorola triple mica "O" getter NOS 1963
1 section) 73.6ma Gm=8800
1 section) 75.6ma Gm=9000
Tested on Amplitrex
Good Ma range 38-45ma
Good Gm range = 7000-7500
Recommended for
- Single Power
(Vfil=6.3V @ 1.5A, Vplate max=500V, Iplate max=60ma, Pout max = 12 watts total for both triode sides)
Typical Characteristics Class A Amp:
Vplate= 250V
Iplate= 42ma
Vgrid=
Rp= 1300 ohms
Mu= 10
Gm= 7600 mhos
