(!!!!) (Best Pair #1) E80CC=6085 Philips and RTC Holland gold pins NOS 1961-1972 (6.3/6.8ma and 6.1/6.9ma) 1-3% matched
(!!!!) (Best Pair #1) E80CC=6085 Philips and RTC Holland gold pins NOS 1961-1972 (6.3/6.8ma and 6.1/6.9ma) 1-3% matched
$ 219.99

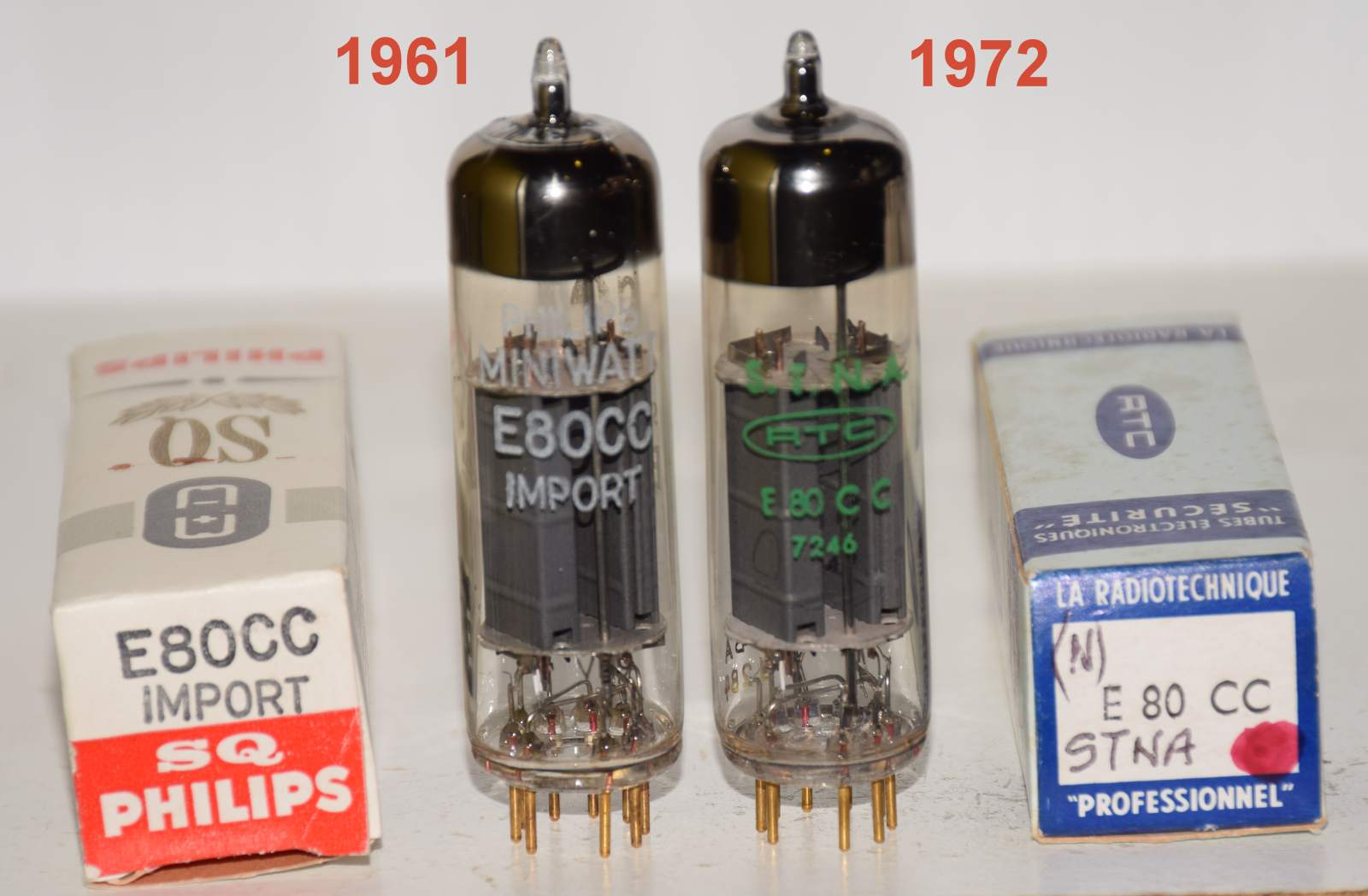

1 low noise pair) E80CC=6085 Philips and RTC Holland gold pins NOS 1961-1972
1 tube) 6.3ma/6.8ma Gm=2600/2600 Philips Miniwatt 1961
1 tube) 6.1ma/6.9ma Gm=2500/2500 RTC 1972
Matched on Amplitrex
Vplate=250V
Vgrid=-5.5V
Iplate Good range 5-6ma
Gm Good = 2500
(6085 specs are similar to 12AU7, but 6085 has slightly higher plate resistance, lower Gm and lower Mu)
(10,000+ hour Dual Triode, very good audio tube, recommended)
(Shock and vibration resistant)
(Vfil=12.6V @ 300ma or 6.3V @ 600ma)
- Eastern Electric Minimax (sub for 12AU7)
- Bottlehead headphone amp
- Audio Note L3 phono kit
MAX RATINGS:
-----------
Vplate = 300V
Iplate = 12ma
Plate Dissipation = 2W
See more: vacuum tube
