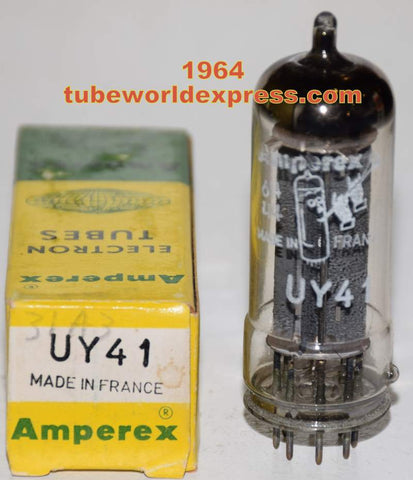

UY41=31A3 Amperex Bugle Boy France NOS 1964 (0 in stock)
$ 19.99
Sorry, this product is sold out!
0) UY41=31A3 Amperex Bugle Boy France NOS 1964
Vfil=31V
The UY41 is a half wave rectifier from the first development of all glass valves in the mid 1940s. The envelope is shaped to replace the metal skirt and location pip of the original B8A valves. The locating device being essential as all pins are equi-spaced around the circumference of the pin circle.
The valve would be damaged if not operated with a minimum series resistance of 210 Ohms. The maximum value of reservoir capacitor should be limited to 50 µF
The thin glass tube envelope is 21 mm in diameter and, excluding the B8A base pins, is 58 mm tall.
References: Datasheet, 3002 & 1040. Type UY41 was first introduced in 1947.
