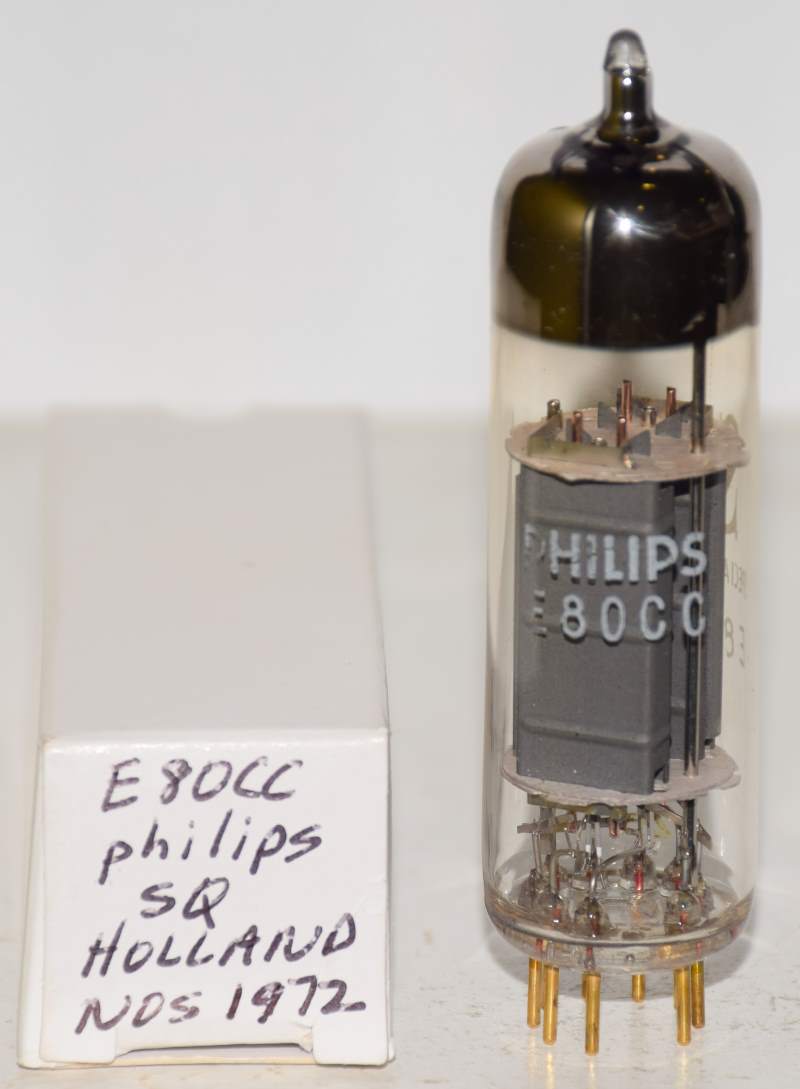

(!!!!) (Single) E80CC=6085 Philips Holland SQ gold pins NOS 1972 (6.2/7.8ma)
$ 99.99
1 low noise tube) E80CC=6085 Philips Holland SQ gold pins NOS 1972 in white box
6.2ma Gm=2750
7.8ma Gm=3100
Matched on Amplitrex
Vplate=250V
Vgrid=-5.5V
Iplate Good range 5-6ma
Gm Good = 2400-2600
(6085 specs are similar to 12AU7, but 6085 has slightly higher plate resistance, lower Gm and lower Mu)
(10,000+ hour Dual Triode, very good audio tube, recommended)
(Shock and vibration resistant)
(Vfil=12.6V @ 300ma or 6.3V @ 600ma)
- Eastern Electric Minimax (sub for 12AU7)
- Bottlehead headphone amp
- Audio Note L3 phono kit
MAX RATINGS:
-----------
Vplate = 300V
Iplate = 12ma
Plate Dissipation = 2W
