(!!!) (PAIR) VT-25-A Sylvania NOS and like new 1940's (34ma and 38.2ma) (not the same as VT-25)
(!!!) (PAIR) VT-25-A Sylvania NOS and like new 1940's (34ma and 38.2ma) (not the same as VT-25)
$ 239.99

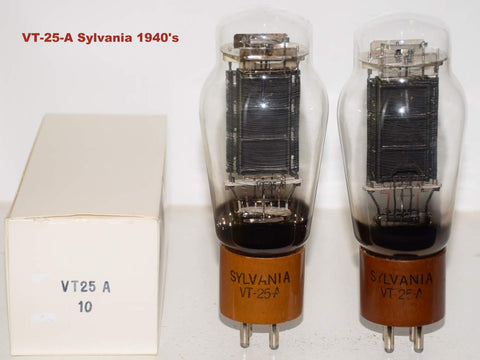

1 pair) VT-25-A Sylvania 1940's in white boxes
1 tube) 34mA Gm=2500 like new - dark brown base partially faded printing
1 tube) 38.2ma Gm=3100 NOS light brown base
- not the same as VT-25=10Y
Tested on Amplitrex
Good current range 20-30ma
Vplate=300V Vgrid=-15V
General Information
(Filament=7V @ 1.2A, Vplate=220V, Vgrid=-7V, Iplate=25ma, Mu=6, Rp=6Kohms)
(The VT-25 is built exactly the same as a VT-52, but the plate and grid are spaced differently yielding different Mu factors and plate resistance)
