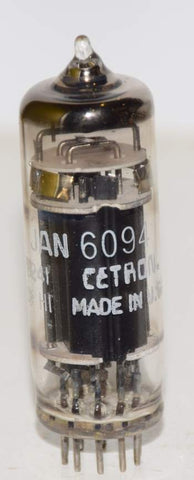

(!!!) (Best Single) 6094 Cetron NOS 1972 (Tungsol clone) (61ma) (last series made)
(!!!) (Best Single) 6094 Cetron NOS 1972 (Tungsol clone) (61ma) (last series made)
By Tube World
$ 119.99
6094 Cetron NOS 1972 in white box
61ma
Gm=4700
Tested on Amplitrex
Vplate=300V
Vscreen=250V
Vgrid=-10V
Good Ma = 50-55ma
Good Gm = 3500-4000
TECH NOTES:
6094=10,000 hour version of 6AQ5A with hard-glass bulb, ceramic spacers
DIFFERENT PIN-OUT=6094 IS NOT A DIRECT SUB for a 6AQ5; you must make or buy an adapter socket to use a 6094 in place of a 6AQ5
Heater = 600ma
Power output up-rated to 14 watts
The 6094 is similar to 6AQ5A, but also is close to a EL84=6BQ5
ALL 3 have different pin-outs
