(!!) (Recommended Pair) JEA-6094 and JAN-6094 Bendix NOS 1959-1961 (49ma and 53ma)
(!!) (Recommended Pair) JEA-6094 and JAN-6094 Bendix NOS 1959-1961 (49ma and 53ma)
$ 269.99

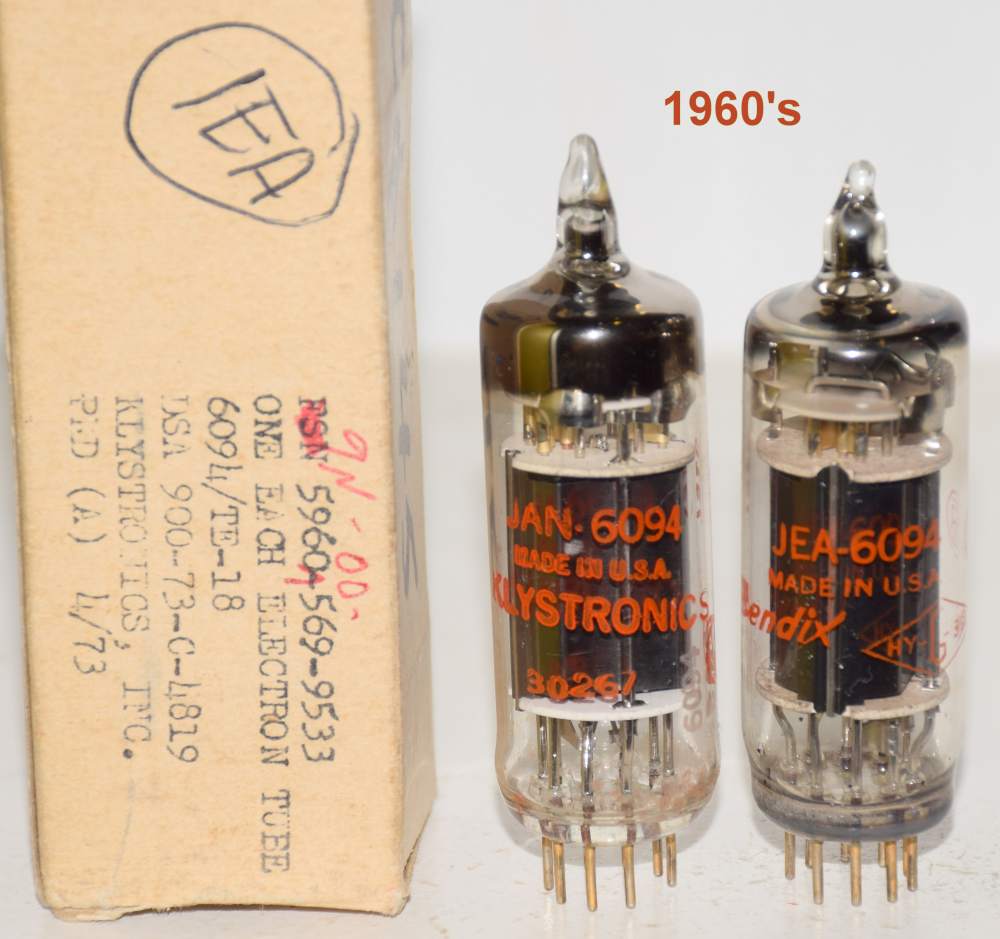

1 pair) JEA-6094 and JAN-6094 Bendix gold pins NOS - pins gently cleaned of oxidation
1 tube) 49ma Gm=4300 (1961) JEA-6094
1 tube) 53ma Gm=4600 (1959) rebranded JAN-6094 Klystronics 1973
Matched on Amplitrex
Vplate=300V
Vscreen=250V
Vgrid=-10V
Good Ma = 50-55ma
Good Gm = 3500-4000
TECH NOTES:
6094=10,000 hour version of 6AQ5A with hard-glass bulb, ceramic spacers
DIFFERENT PIN-OUT=6094 IS NOT A DIRECT SUB for a 6AQ5; you must make or buy an adapter socket to use a 6094 in place of a 6AQ5
Heater = 600ma
Power output up-rated to 14 watts
The 6094 is similar to 6AQ5A, but also is close to a EL84=6BQ5
ALL 3 have different pin-outs
