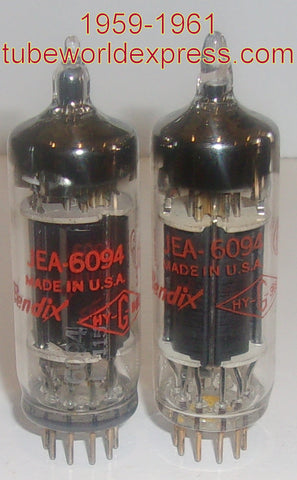

(!!!) (Recommended Pair) JEA-6094 Bendix NOS 1959-1961 pins gently cleaned (57.5ma and 59ma) (matched on Amplitrex)
(!!!) (Recommended Pair) JEA-6094 Bendix NOS 1959-1961 pins gently cleaned (57.5ma and 59ma) (matched on Amplitrex)
$ 299.99
1 pair) JEA-6094 Bendix NOS 1959-1961 in white boxes, pins gently cleaned of oxidation
1 tube) 59.0ma Gm=4600 1961
1 tube) 57.5ma Gm=4650 1959
Matched on Amplitrex
Vplate=300V
Vscreen=250V
Vgrid=-10V
Good Ma = 50-55ma
Good Gm = 3500-4000
TECH NOTES:
6094=10,000 hour version of 6AQ5A with hard-glass bulb, ceramic spacers
DIFFERENT PIN-OUT=6094 IS NOT A DIRECT SUB for a 6AQ5; you must make or buy an adapter socket to use a 6094 in place of a 6AQ5
Heater = 600ma
Power output up-rated to 14 watts
The 6094 is similar to 6AQ5A, but also is close to a EL84=6BQ5
ALL 3 have different pin-outs
