(!!!) (Recommended Pair) 6094 Bendix NOS gold pins 1956 1st series made (49ma and 51.5ma)
(!!!) (Recommended Pair) 6094 Bendix NOS gold pins 1956 1st series made (49ma and 51.5ma)
$ 279.99

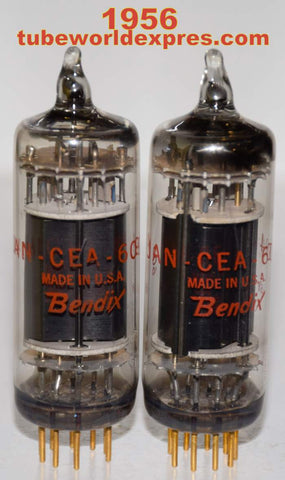

1 pair) JAN-CEA-6094 Bendix NOS gold pins 1956 mica supports at top in white boxes, 1st series of 6094 made
1 tube) 49.0ma Gm=4700
1 tube) 51.5ma Gm=4700
Matched on Amplitrex
Vplate=300V
Vscreen=250V
Vgrid=-10V
Good Ma = 50-55ma
Good Gm = 3500-4000
TECH NOTES:
6094=10,000 hour version of 6AQ5A with hard-glass bulb, ceramic spacers
DIFFERENT PIN-OUT=6094 IS NOT A DIRECT SUB for a 6AQ5; you must make or buy an adapter socket to use a 6094 in place of a 6AQ5
Heater = 600ma
Power output up-rated to 14 watts
The 6094 is similar to 6AQ5A, but also is close to a EL84=6BQ5
ALL 3 have different pin-outs
