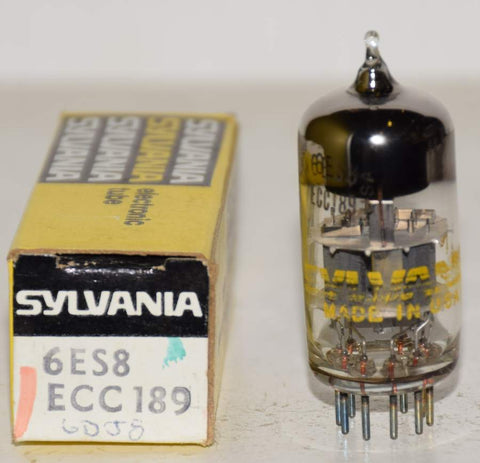

6ES8 Sylvania NOS 1970's (14.4/19ma)
$ 15.99
1 tube) 6ES8 Sylvania NOS 1970's
14.4ma Gm=10,700
19.0ma Gm=13,700
6ES8 has electrical ratings very similar to a 6DJ8=ECC88, 6ES8 have high Gm, low internal capacitances and low noise)
(6ES8 were originally designed for used as cascode VHF amplifiers)
(Vplate max=130V, Iplate max=22ma, Plate Dissipation max= 1.8watts)
(Typical Operation Class A Amp: Vplate=90V, Vgrid=-1.2V, Iplate=15ma, Gm=12500)
"Thank you, I received the Telefunken ECC189=6ES8 tubes today. Well packaged, and beautiful sounding valves. Many Thanks, John"
